This device is well suited for many different applications, especially hunting, but also includes Marine/boating and landscaping as well as cable pulling etc.

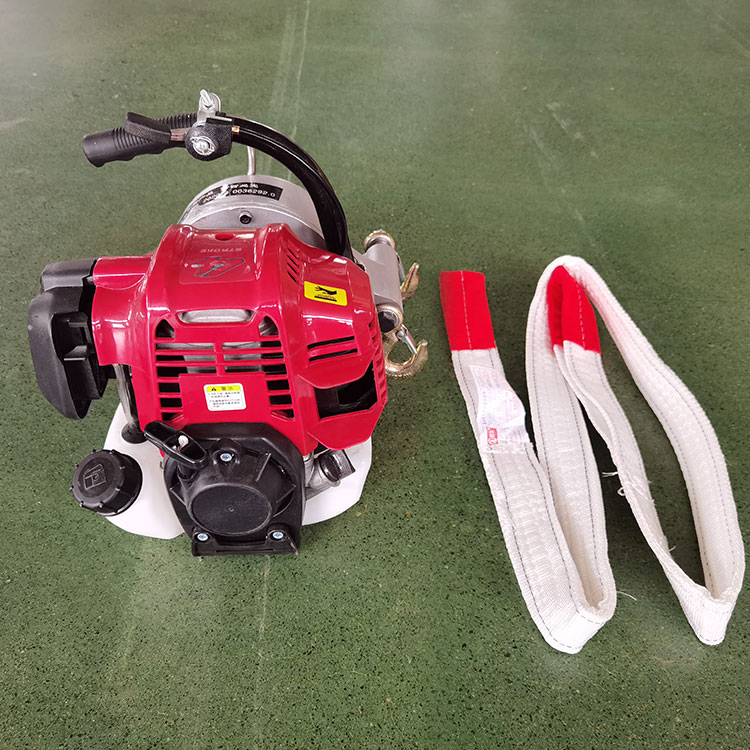

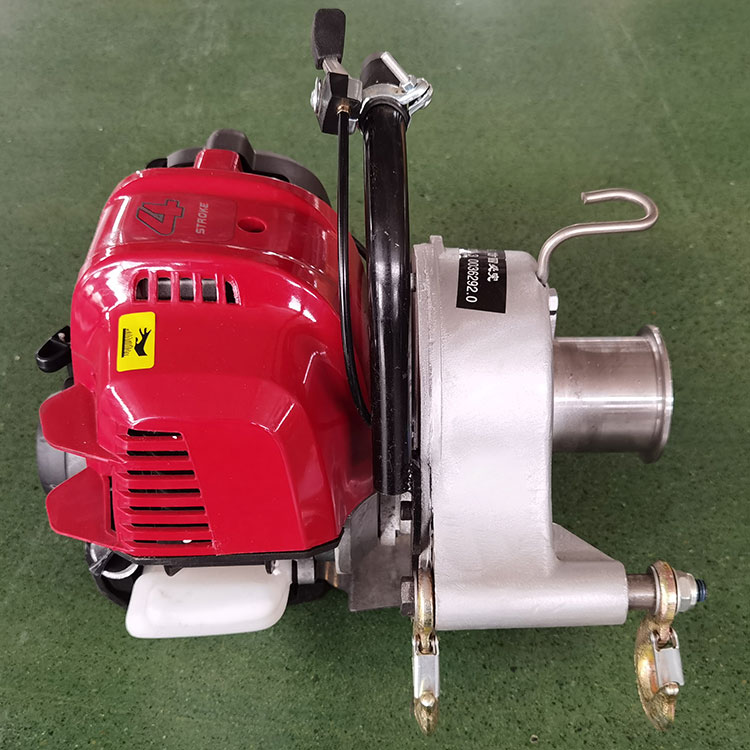

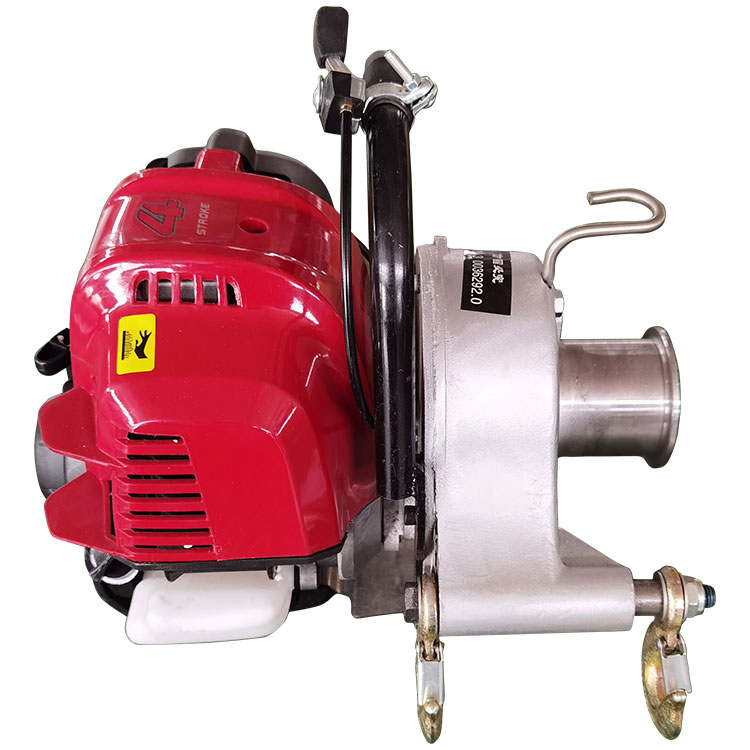

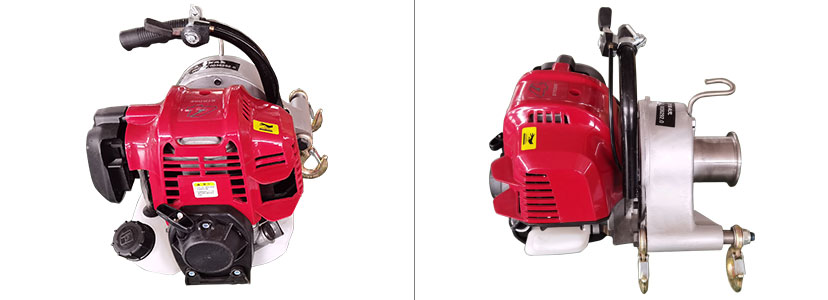

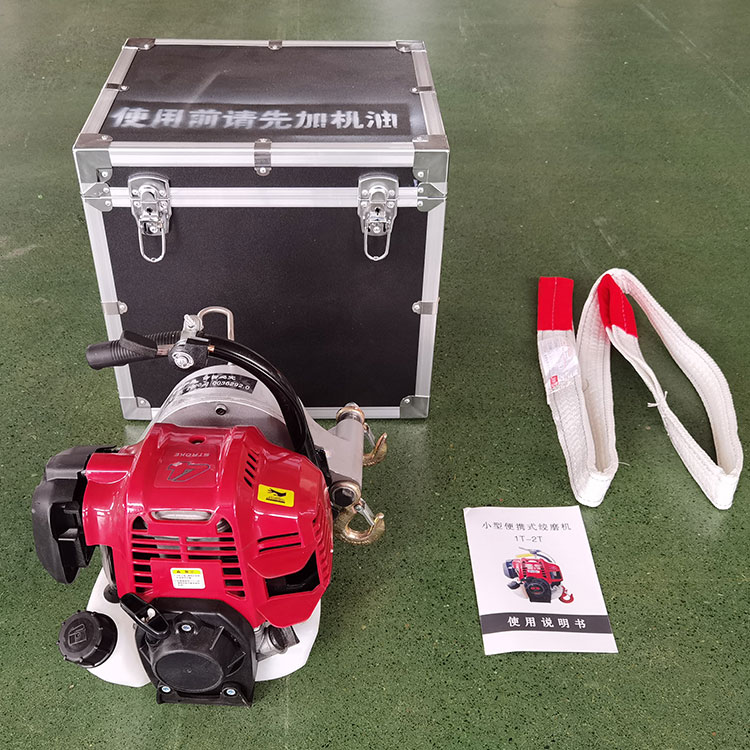

The PCW3000S Portable Capstan Winch is very light: only 95 kg (20 lb) but very powerful: 700 kg (1550 lb) straight line pulls doubled to 1400kg using a pulley.
Features:
- Unlimited rope length
- No kinks, pig tails or barbs on rope
- Reliable and economical 4 stroke engine
- Lightweight design for ease of mobility
- Base frame incorporating hold-down locations
- The gearbox is a rugged and dependable reduction drive
- 100% duty cycle (vs. 20% duty cycle for electric winches)
- Constant pulling power (standard winches are rated for 1st layer pull)
- All steel work is grit blasted and primed with two-pack epoxy primer and finished with heavy-duty two-pack epoxy poly amine industrial coatings
| Technical data | |
| Engine | 4-stroke all positions Honda GX-35 cc |
| Maximum pulling force (single line) | 700 kg (1550 lb) |
| Speed | 8 m/min (26 ft/min) |
| Capstan drum | 76 mm (3″) diameter Up to 4 wraps of 10 mm (3/8″) rope |
| Gear box | Aluminum alloy |
| Gear ratio 200 | 1 |
| Unit weight | 95 kg (20 lb) |
| Dimensions (overall) | Length 35 cm x Width 289 cm x Height 261 cm (13-3/4″ x 11-3/8″ x 10-1/4″) |
| Rope to use | Double braided polyester (not included) |
| Unlimited rope length Minimum diameter | 10 mm (3/8″) Maximum diameter: 12-13 mm (1/2″) |
The PCW3000S Forestry Kit was designed to suit the needs of Arborists, Loggers, and all tree care professionals. A day working with trees can be hard work. Our goal with this kit was to make that work easier.
It includes the skidding cone , which prevents logs from getting stuck in roots, stumps and other obstacles. Its shape allows it to slide along the residual trees, thus avoiding injuries during regeneration. The 3/8” x 164′ rope allows you to reach trees where they are. As for the single pulley , it will be useful to deviate the load or to double the pulling force if need be.
Combined with the 2,200-lb power offered by the winch PCW3000S, you will obtain 4,400 lb of force!

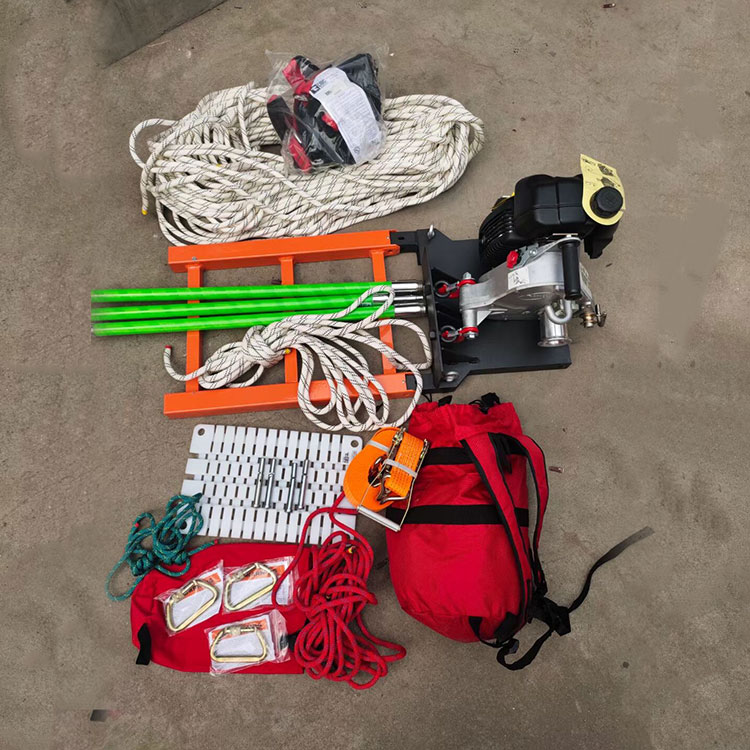

The PCW3000S Forestry Kit includes the following:
| Gas powered winch (PCW3000S) with Max. pulling force | 2200 lbs. |
| Transport bag for winch and accessories (PCA-0106) | 2" x 6 ft. |
| Polyester sling | 2" x 6 ft. |
| Double braided polyester rope | 3/8" x 164 ft. |
| Rope bag - vinyl | Holds 1/2" x 164 ft. |
| - | Stainless steel swing side snatch block |
| - | Steel oval locking carabiner(x2) |
| - | Grab hook with latch and 3 chain links |
| - | Skidding cone for logs up to 20" diameter |
| Choker Chain | 0.25" x 6 ft.w/ C-hook and steel rod |
Also included in this kit is a Grab hook, snatch block, and two carabiners to help assist your pulling needs. Use these accessories to pull even heavier loads more securely than the Winch is capable of alone. An interesting alternative to the kit to get some wood out and face all the situations encountered in the forest!
